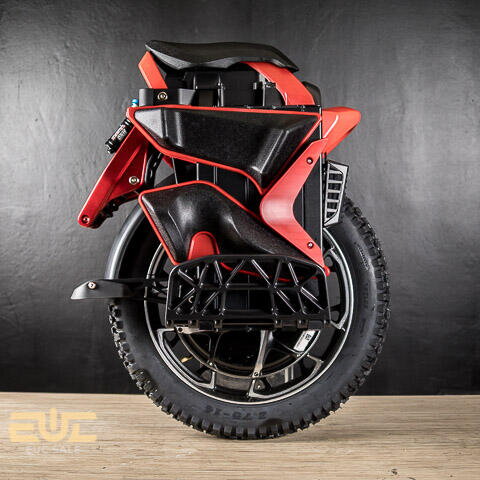

KINGSONG S22 PRO v4

Hodnocení produktu: 4.17/5 (29x)

Vaše hodnocení:

Dostupnost: Sklad

Doručíme dne:

Dojezd 110 Km, maximální rychlost 70 Km/h, váha 35.0 Kg Čtěte více

79000 Kč s DPH

81000 Kč s DPH Sleva 2000 Kč

Množstevní slevy

ks a víc /ks

Našli jste lepší cenu?

Dotaz k produktu

Hlídací pes

Nejdříve se musíte přihlásit

Zavřít

Popis
Diskuse (0)
Dotaz k produktu

A Brief History...

Utilizing the experience of the S18 combined with the understanding of the demand of the current market we started work on the S22 Eagle. To reach new heights, after the production of the S18 we worked hard and relentlessly start prototyping and designing a new wheel that will tackle the most extreme, all the hard work and dedication allowed us to achieved what we set out to do with the S22 Eagle. In comparison, the S2 is 23% larger, with doubled the amount of battery capacity, upgraded to a professional suspension with 30% longer suspension travel. Through countless designs, the study of the human body on an electric unicycle we became the first company to integrate built in 'powerpads' all in the pursuit of the best experience possible.

Design

After the introduction of the suspension electric unicycle, we started asking ourselves where the limit was. Hovering high above the land, spreading its wings, there's nowhere it can't go! Through the clouds, overlooking the vast rivers and mountains, standing on the peak. Despite the long day, the Eagle's irresistible power can only be gazed upon by other birds. To countless flights, the King Song S22 Eagle.

Features

● Long Travel Suspension System ● Customizable Power Pads ● Tiltable Headlights ● Smart BMS ● 126V High Voltage ● Max Speed 70km/h ● Built In Kickstand ● Spiked Pedals ● Modular Motherboard ● Hollow Motor

Contents

Suspension System ● Suspension Theory ● Suspension Model ● Suspension Travel Power System ● Hollow Motor ● Nominal Voltage ● Peak Voltage ● Max Speed ● Climbing Grade Electrical System ● Battery Model ● Assembly ● Battery Capacity ● Range ● Fast Charging Other ● Controller Design ● Light Systems ● Kickstand ● Bumper ● Trolley Handle ● Display ● Power Pad ● Spiked Pedals

★ Suspension System★

Unique cross suspension system adopts a racing grade lever structure to achieve the best support and a soft linear dampening experience. Through the linkage, the force becomes non-linear, thereby designing an ideal suspension that is soft on flat roads and strong on tough terrains.

● 240-75 Spring Suspension

● Adaptable to any Terrain Tackle gravel roads, dirt roads, and asphalt

Battery System

● LG50LT 21700 Utilizing LG 21700 5000mA, 120 cells. 2220Wh Battery Capacity ~200km Range ~4h Charge Time 90-126V Output Voltage

●Dual Battery Packs Paired with Smart BMS system, check the battery health levels and ensure the safety of the packs. *Range test conditions: under full power, 60kg load, ambient temperature of 25℃, measured at a speed of 20km/h on a flat hardened road at a constant speed, the actual range varies according to speed, number of starts, stops, ambient temperature, etc...

Charging Systems

● Charger Stats 2 x GX16-6 charge socket supports dual charging. Controller detects the charging parameters in real time, and can quickly and actively cut off the power supply in the case of overcurrent, overvoltage, etc., to ensure the safety of charging. to

● Charger Specs Input: AC 100-240V Output: DC 126V 6A * Standard 6a charger included.

Controller Design

● Brand New Modular Controller Controller integrates rear lights, charger, on/off, display, all within one for easier.

● 4 Layer Design Cool temperatures even with high current output。 The antiinterference ability of the S20 is stronger and is more stable.

● TO-247 MOS A total of 12 high voltage MOS to supply the 3300w motor with the highest performance possible.

● Heat Sink Control MOS are connected to the aluminum frame for the best heat conductivity. 16 heat sink columns ensure fast heat dissipation to provide riders with the utmost stability

Lighting Systems

● 5W*8 Adjust the lights angle, have 15° of freedom.

● Rear Light Rear bright LED with integrated turn signals

Power Systems

● Custom Hollow Bore Motor Not a hollow bore motor youll find on the market. 60mm opening means smaller resistances, custom bearing seal for protection against the toughest weather conditions. Motor bracket is made from aluminum alloy and the temperature is monitored in real time protecting the rider at all times. 3300W Nominal Voltage 7500W Peak Voltage Power Output Efficiency Range 40°/84% Climbing Ability 70km/h Max Speed 105km/h Lift/Free Spin Spee

Specifications
Top Speed
Full speed unlocked after 10km. Max speed of 70km/h (Factory alarm settings: Level 1- 18km sound alarm; Level 2- 19km sound alarm; Level 3- Sound alarm with tiltback)
Mileage
Mileage 2220Wh (around 200km)
Maximum Gradibility
Around 40°
Battery
Rated Power： DC 111V Top Charging Voltage： DC 126V Rated Capacity：2220Wh Smart BMS with balance and protect overshoot/ over discharge/ overcurrent/ short circuit/ overheating function, support monitoring the battery conditions via KingSong APP
Operating Temperature
-10℃/+45℃
Max Load
120kg
Charger Voltage Input
AC 80~240 V ，output DC126V/6A
Charging Time 2220Wh:
about 4h 6A
Rated Power
3300w
Max Power
7500w
Color
Black and Red
Dimensions
693/747mm（H） x 582mm(L） X 330/465mm（W） (H is the height not including the seat cushion and the height including the seat cushion, and W is the maximum width with the pedals stowed and the pedals opened)
Package Size(mm)
995mm（H）x785mm(L）x500mm（W）
Suspension
Specification GR-27RC 750 lb spring suspension
Suspension
Distance Using a variable lever the wheel has dampening travel distance of 75mm which is transferred to the rear spring suspension with a
Pedal Size and Height
Pedal size: 277*130mm. Pedal height
Tire Size
20inch Diameter 3.0"inch
Weight 2220wh
around 28kg
EUC Port
Dual GX16-6 aviation charging port; power switch; light sensor port
Light UP Displays
Cool columnar horizontal stripes red brake lights at the rear, and built in speedo.
Lift Sensor
Lift sensor accurately senses and determines when wheel is lifted off the ground to stop tire rotation
Roll Protection
45° left and right side. ( Motor stalls when over 45° ) Place the machine vertically on the ground will restart automatically, no need to restart manually
Speed Limit
Protection Beep alarm or voice alarm when exceed limit speed
Low Battery Protection
Low battery protection activated on 30% battery, speed will decreases linearly; when the battery is lower than 5%, voice alarm for charge, when battery at 0%, the front part of the pedal will rise
Higher Temperature
Protection When the motherboard reaches 80℃ it will cresult tiltback. When the motor reaches 120℃ it will result in tiltback
Mainboard
The motherboard is designed with a 4 layer structure, allowing for better stability performance. 12 large individual TO-247 imported MOS to sufficiently support the 3300W motor. MOS is attached to the aluminate body frame of the wheel, and 16 heat dissipation channels have been added to the bottom of the magnesium alloy motherboard base, for better heat dissipation, which provides a strong guarantee for fast and stable operation
Bluetooth
Bluetooth 5.0. stronger compatibility and allowing strong
USB Output
Quick charge 3.0
Front Light
8*5W lights on the left and right, automatically adjust the brightness according to the speed (twice the S18), and the two lights can adjust the angle separately to provide good
Taillight
Red brake light at the tail and
Display screen
Integrate power, speed, and other information into one matrix display
Motor
Higher power 3300w motor that provides a maximum torque of 160N.m providing fast
Suspension System
Unique X shaped suspension system. Pro level suspension provides the ultimate support and shock absorption
Seat cushion
Added a comfortable seat cushion for skilled and long-distance cyclists, ergonomic design, alleviating the toil of standing riding
Standard Accessories
1x Charger, 1x Manual, 1x Warranty card, 1xSeat Cushion, 1x QC certificate
